[해피CGI][cgimall] 3D 이미지 큐브 갤러리 인터랙션 효과

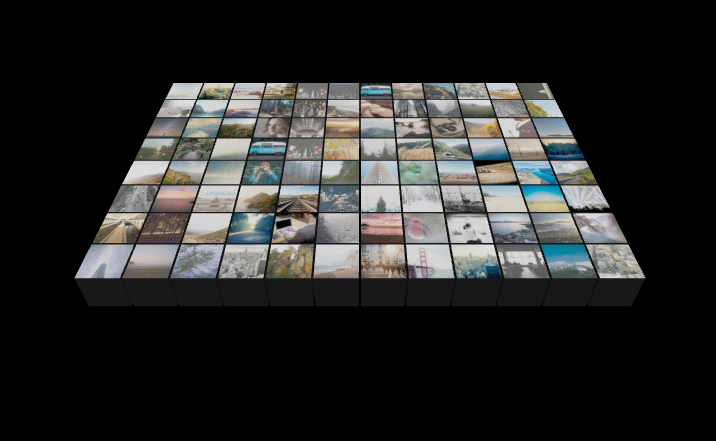

여러 개의 이미지를 3D 큐브 형태로 배치하여 마우스 움직임에 따라 입체적으로 반응하는
이미지 갤러리 효과를 구현한 예제입니다.
사용자가 마우스를 움직이면 이미지가 자연스럽게 이동하거나 강조되어 보여지며,
일반적인 이미지 목록보다 더 생동감 있는 화면 구성을 만들 수 있습니다.

포트폴리오 페이지, 작품 갤러리, 상품 소개 페이지 등에서
시각적으로 흥미로운 콘텐츠 표현을 위해 활용할 수 있는 인터랙션 효과입니다.

HTML 구조

<!-- Lightbox HTML -->

<div id="lightbox">

    <div id="close-btn">&times;</div>

    <img id="lightbox-img" src="" alt="Fullsize">

</div>



<script type="importmap">

  {

    "imports": {

      "three": "https://unpkg.com/three@0.160.0/build/three.module.js",

      "three/addons/": "https://unpkg.com/three@0.160.0/examples/jsm/"

    }

  }

</script>



CSS 소스

  body { margin: 0; overflow: hidden; background-color: #000; }

        canvas { display: block; }



        /* Lightbox styles */

        #lightbox {

            display: none; /* Hidden by default */

            position: fixed;

            z-index: 1000;

            top: 0;

            left: 0;

            width: 100%;

            height: 100%;

            background-color: rgba(0, 0, 0, 0.9);

            justify-content: center;

            align-items: center;

            opacity: 0;

            transition: opacity 0.3s ease;

        }



        #lightbox.active {

            display: flex; /* Use flex to center content */

            opacity: 1;

        }



        #lightbox img {

            max-width: 90%;

            max-height: 90%;

        }



        #close-btn {

            position: absolute;

            top: 20px;

            right: 40px;

            color: #fff;

            font-size: 30px;

            cursor: pointer;

            font-family: sans-serif;

            user-select: none;

        }

JS 소스

 import * as THREE from 'three';

    import { OrbitControls } from 'three/addons/controls/OrbitControls.js';



    // === 1. SCENE SETUP ===

    const scene = new THREE.Scene();

    scene.background = new THREE.Color(0x000000);



    const camera = new THREE.PerspectiveCamera(45, window.innerWidth / window.innerHeight, 1, 2000);

    camera.position.set(0, 100, 120);



    const renderer = new THREE.WebGLRenderer({ antialias: true });

    renderer.setSize(window.innerWidth, window.innerHeight);

    renderer.setPixelRatio(window.devicePixelRatio); // For high DPI screens

    document.body.appendChild(renderer.domElement);



    const controls = new OrbitControls(camera, renderer.domElement);

    controls.enableDamping = true; // Inertia

    controls.dampingFactor = 0.05;

    controls.minDistance = 50;

    controls.maxDistance = 500;

    controls.maxPolarAngle = Math.PI / 2; // Prevent camera from going under the grid



    // Lighting

    const ambientLight = new THREE.AmbientLight(0xffffff, 1.0);

    scene.add(ambientLight);



    const dirLight = new THREE.DirectionalLight(0xffffff, 1.5);

    dirLight.position.set(20, 80, 50);

    scene.add(dirLight);



    // === 2. CUBE GENERATION ===

    const cols = 12;

    const rows = 8;

    const cubeSize = 10;

    const gap = 0.5;

    const step = cubeSize + gap;



    // Calculate grid dimensions to center it

    const gridWidth = cols * step - gap;

    const gridDepth = rows * step - gap;

    const startX = -gridWidth / 2 + cubeSize / 2;

    const startZ = -gridDepth / 2 + cubeSize / 2;



    const cubes = [];



    const textureLoader = new THREE.TextureLoader();

    const sideMaterial = new THREE.MeshLambertMaterial({ color: 0x222222 }); // Dark grey sides

    const geometry = new THREE.BoxGeometry(cubeSize, cubeSize, cubeSize);



    for (let i = 0; i < cols; i++) {

        for (let j = 0; j < rows; j++) {



            // Use 'seed' to get the same image for thumbnail and full size

            const seed = `img_${i}_${j}`;

            const thumbUrl = `https://picsum.photos/seed/${seed}/200/200`; // Low res for texture

            const fullUrl = `https://picsum.photos/seed/${seed}/1200/800`; // High res for lightbox



            const texture = textureLoader.load(thumbUrl);

            texture.anisotropy = renderer.capabilities.getMaxAnisotropy();



            const topMaterial = new THREE.MeshLambertMaterial({ map: texture });



            // Material array: [Right, Left, Top, Bottom, Front, Back]

            const materials = [

                sideMaterial, sideMaterial,

                topMaterial, // Top face has the image

                sideMaterial, sideMaterial, sideMaterial

            ];



            const cube = new THREE.Mesh(geometry, materials);



            // Positioning

            cube.position.x = startX + i * step;

            cube.position.z = startZ + j * step;

            cube.position.y = 0;



            // Store custom data for animation and lightbox

            cube.userData = {

                targetY: 0,

                fullUrl: fullUrl

            };



            scene.add(cube);

            cubes.push(cube);

        }

    }



    // === 3. RAYCASTING SETUP ===

    const raycaster = new THREE.Raycaster();

    const mouse = new THREE.Vector2(9999, 9999); // Start off-screen

    let hoveredCube = null;



    function onMouseMove(event) {

        // Normalize mouse coordinates (-1 to +1)

        mouse.x = (event.clientX / window.innerWidth) * 2 - 1;

        mouse.y = -(event.clientY / window.innerHeight) * 2 + 1;

    }

    window.addEventListener('mousemove', onMouseMove, false);



    // === 4. CLICK HANDLERS & LIGHTBOX ===

    const mouseDownPos = new THREE.Vector2();



    // Track mouse down position

    window.addEventListener('mousedown', (event) => {

        mouseDownPos.x = event.clientX;

        mouseDownPos.y = event.clientY;

    });



    const lightbox = document.getElementById('lightbox');

    const lightboxImg = document.getElementById('lightbox-img');

    const closeBtn = document.getElementById('close-btn');



    function openLightbox(url) {

        lightboxImg.src = url;

        lightbox.style.display = 'flex';

        requestAnimationFrame(() => lightbox.classList.add('active'));

    }



    function closeLightbox() {

        lightbox.classList.remove('active');

        setTimeout(() => {

            lightbox.style.display = 'none';

            lightboxImg.src = "";

        }, 300); // Wait for transition

    }



    window.addEventListener('click', (event) => {

        // Calculate distance between mousedown and mouseup

        const dx = event.clientX - mouseDownPos.x;

        const dy = event.clientY - mouseDownPos.y;

        const distance = Math.sqrt(dx * dx + dy * dy);



        // If moved less than 5px, treat as a click. Otherwise, it's a drag (camera control).

        if (distance < 5 && hoveredCube) {

            openLightbox(hoveredCube.userData.fullUrl);

        }

    });



    // Close on background click or close button

    lightbox.addEventListener('click', (e) => {

        if (e.target !== lightboxImg) closeLightbox();

    });

    closeBtn.addEventListener('click', closeLightbox);





    // === 5. ANIMATION LOOP ===

    function animate() {

        requestAnimationFrame(animate);

        controls.update();



        // LOGIC: Check intersection with actual cubes

        raycaster.setFromCamera(mouse, camera);

        const intersects = raycaster.intersectObjects(cubes);



        if (intersects.length > 0) {

            // Get the first (closest) cube

            hoveredCube = intersects[0].object;

        } else {

            hoveredCube = null;

        }



        // Update cursor style

        if (hoveredCube) {

            document.body.style.cursor = 'pointer';

        } else {

            document.body.style.cursor = 'default';

        }



        // Animate cubes

        cubes.forEach(cube => {

            if (cube === hoveredCube) {

                // Lift height set to 5

                cube.userData.targetY = 5;

            } else {

                cube.userData.targetY = 0;

            }



            // Smooth interpolation (Lerp)

            cube.position.y += (cube.userData.targetY - cube.position.y) * 0.15;

        });



        renderer.render(scene, camera);

    }



    // Handle window resize

    window.addEventListener('resize', () => {

        camera.aspect = window.innerWidth / window.innerHeight;

        camera.updateProjectionMatrix();

        renderer.setSize(window.innerWidth, window.innerHeight);

    });



    animate();
